Odorants can be displayed quickly.
40 different favorite odorants can be freely handled.
Use with the Next-gen Olfactometry System, you can freely present any odorants of your choice.
The custom cartridges can be filled with your favorite odorants, with a maximum of 40 odorants per cartridge. The dedicated application makes it easy to customize the odorants presentation, including how to present and creating quizzes.
What the custom cartridge can do
Reference odor
Distinguish odor
By selecting registered odorants from a list, you can easily present the odorant.
Multiple Choice
Blind Test/Olfactory Training
By selecting one of registered odorants,
you can make quiz-style questions.
Olfactometry/ Training
The Three-choice Method / The 5-2 Method
By presenting consective multiple odorants,you can set questions in three-choice method and 5-2 method.
*Images are for reference only. English menu is also available.
Optional Service*: Dedicated App for Sniffin' Sticks
Supports all three Sniffin' Sticks tests

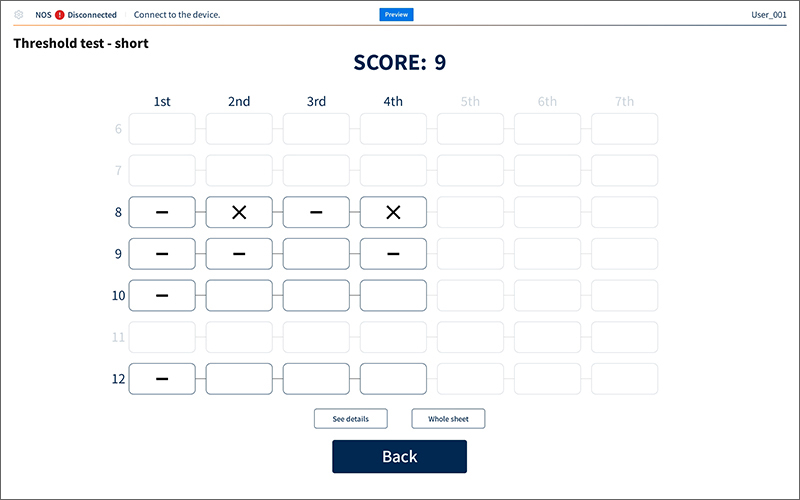

Threshold test
Measures odor detection sensitivity using 16 different concentrations of an odorant. At each level, three odor presentations are delivered in random order—one contains the odor, and the other two are odorless. The subject is asked to select the presentation that contains the odor. Testing continues until the subject reliably detects the odor.

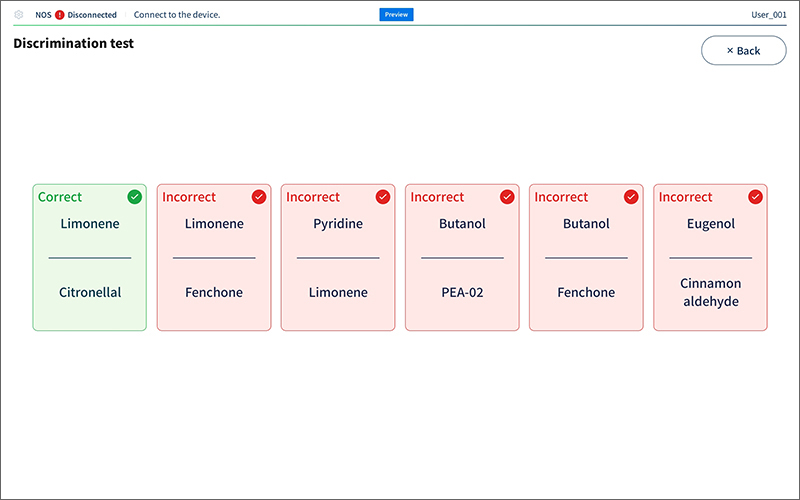

Discrimination test
Measures the ability to distinguish between different odors. Each of the 16 sets includes three odor presentations—two are the same, and one is different. The subject is asked to select the one that smells different from the others.

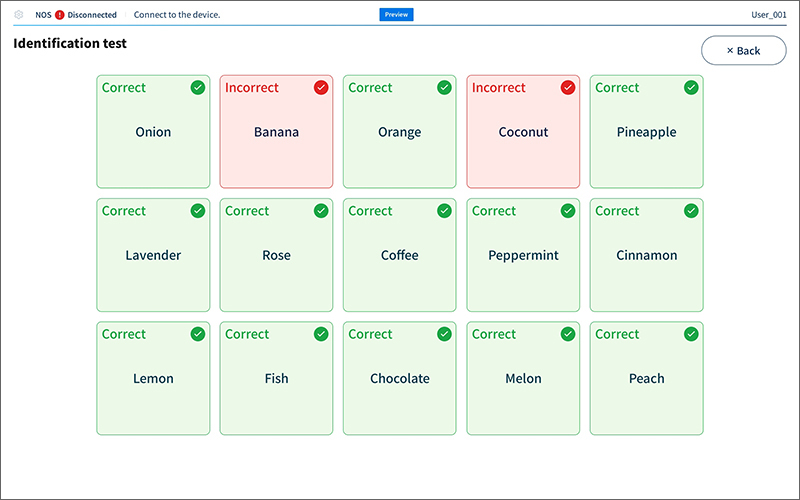

Identification test
Measures the ability to correctly identify odors. A total of 16 odors are presented, one at a time. For each odor, the subject is asked to select the correct answer from four choices.

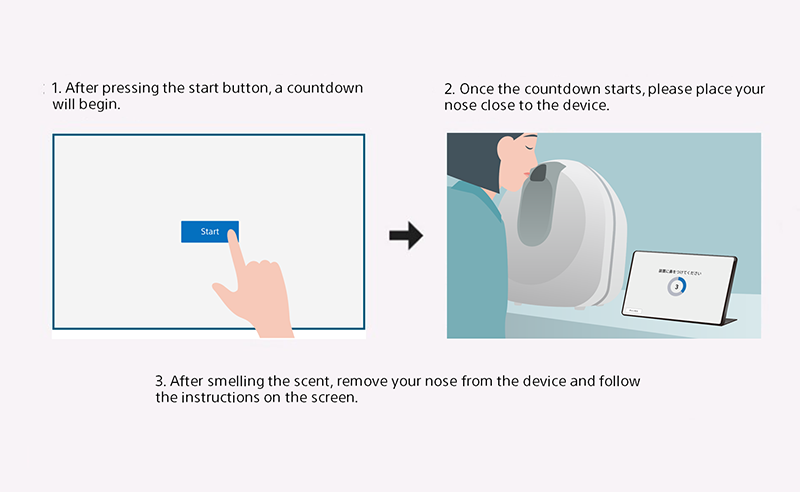

Self-Testing Mode reduces examiner workload and testing time
The test proceeds automatically with on-screen guidance, reducing examiner workload and shortening testing time.
Subjects can perform the tests independently with minimal instruction.

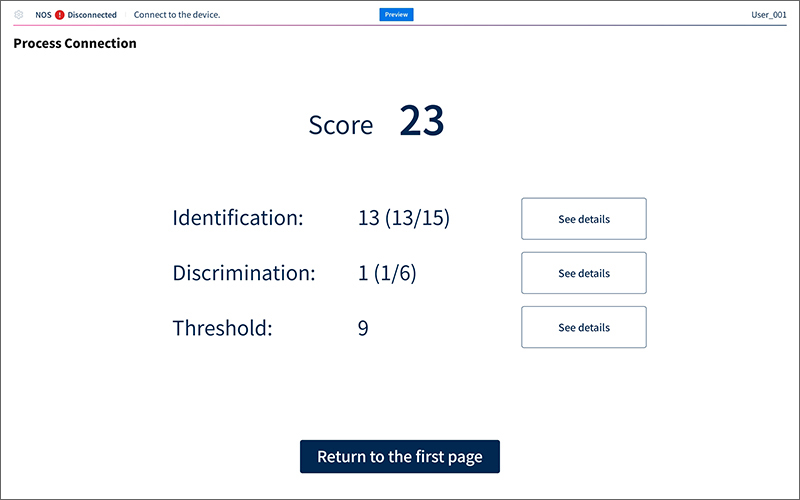

All records are automatically logged, and scores are calculated and displayed immediately after the test.
- *This application is a prototype, and its specifications are subject to change without prior notice. It is provided separately from the main device and is available for an additional fee.
Usage Scenes
Quality Control
(e.g., food companies)
You can use for training and measurement of olfactotry skills such as odorants detection and identification.
Methods commonly used in sensory evaluation, such as the three-choice method and the 5-2 method, can be easily implemented.
Product Development
(e.g. food/cosmetics companies)
Easily compare multiple fragrance samples and monitor evaluations by multiple people for the purpose of product development.
Exhibitions and Events
When you want to present fragrance samples at a storefront or event, you can easily select and experience your favorite fragrance simply by operating a tablet.
Olfactory Training
For training to memorize multiple smells, target smell references and blind tests can be easily realized.
Products required for use

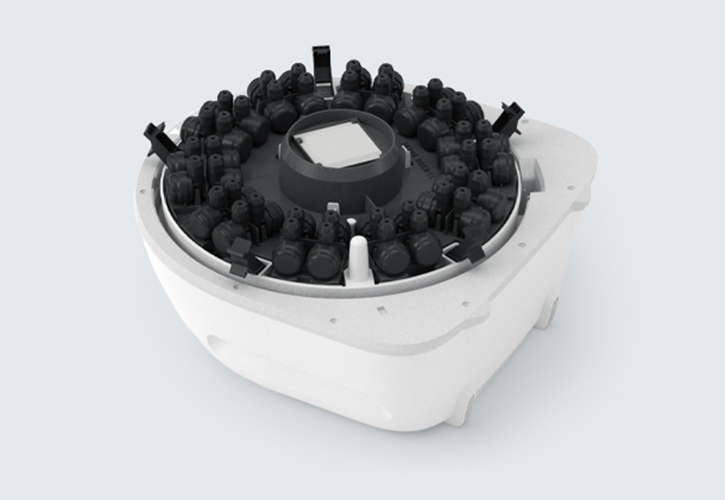

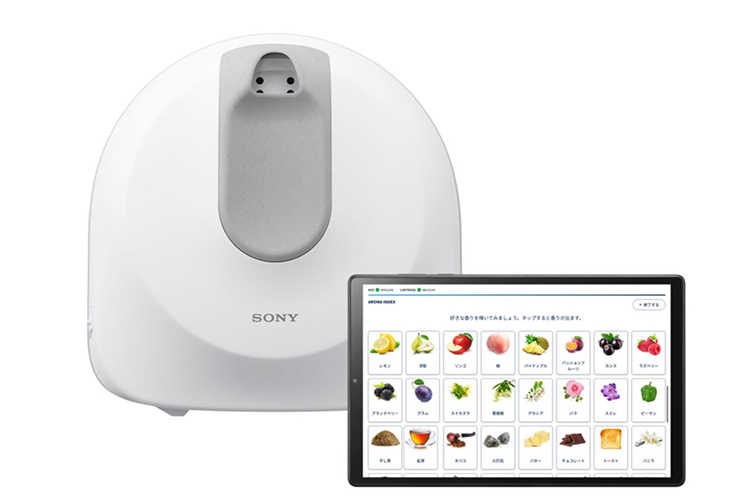

NOS-DX1000
The Next-gen Olfactometry System with dedicated tablet

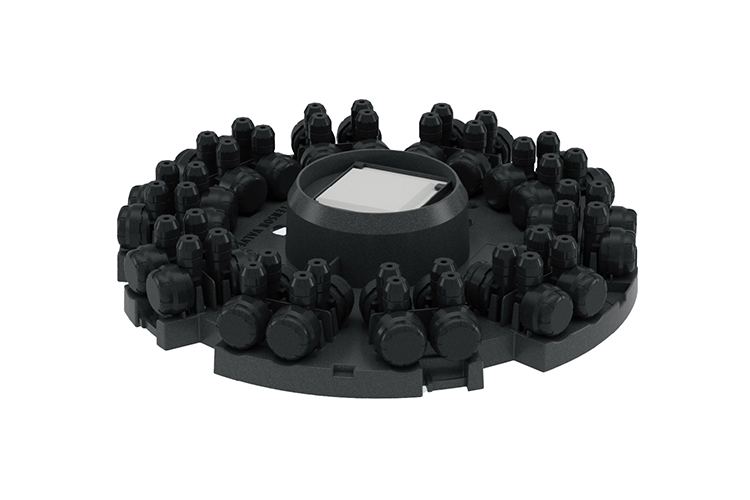

NOS-CK10
Custom Cartridge

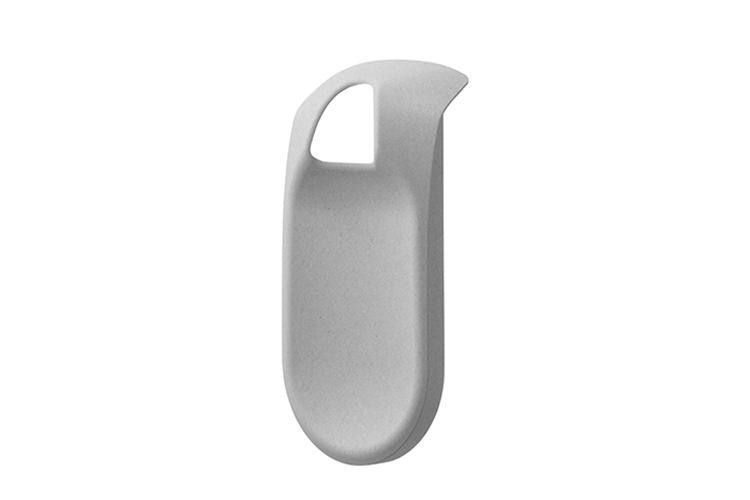

NOS-NG70
Nose Guide
NOS-JG10
Cartridge Clamper
*This is a special tool used in the odorants injection process.
How to use
Inject the odorants of your choice.
Make your own presentation method and process with the application.
*The screen is a sample image.

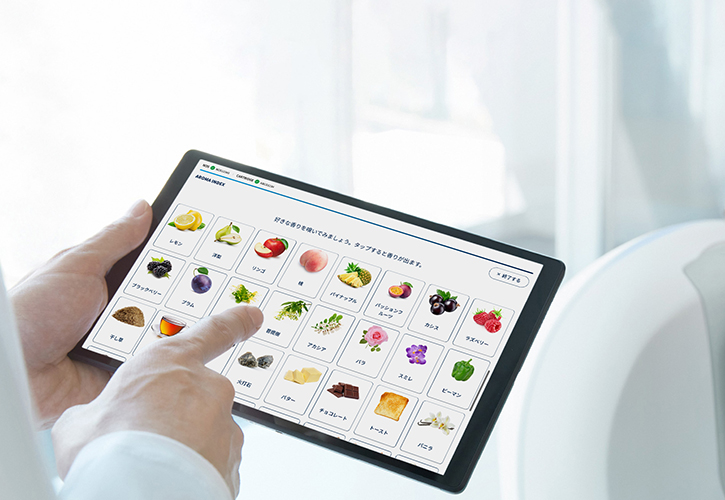

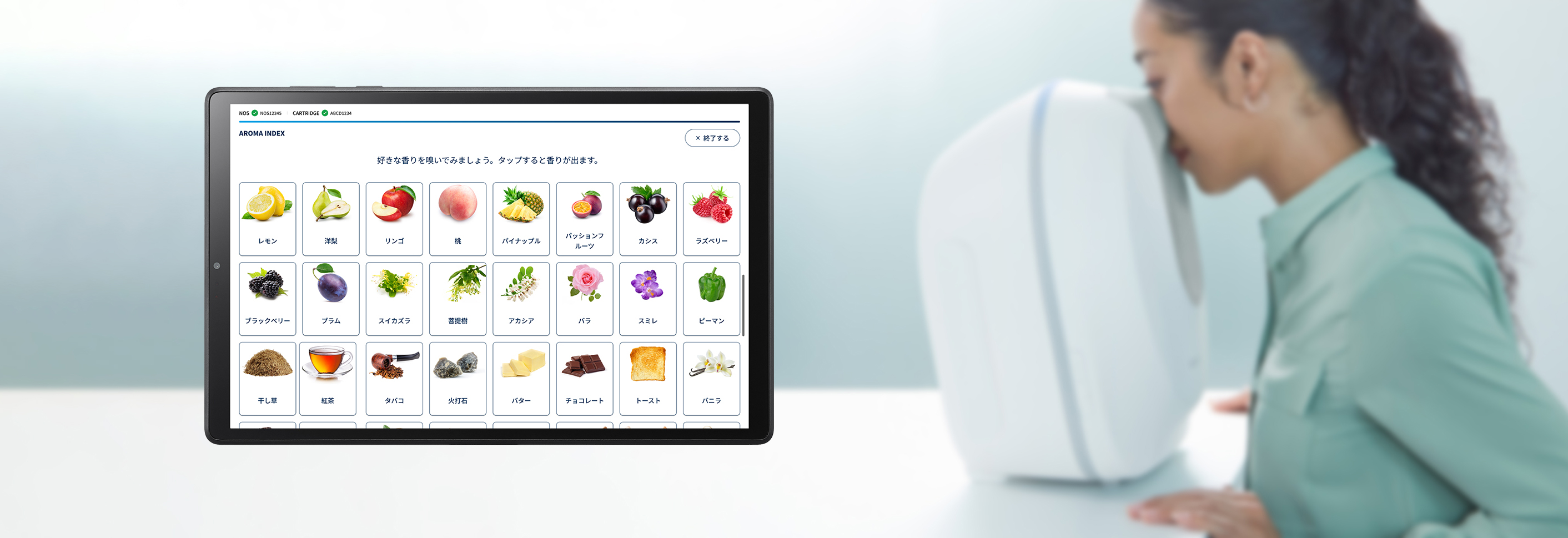

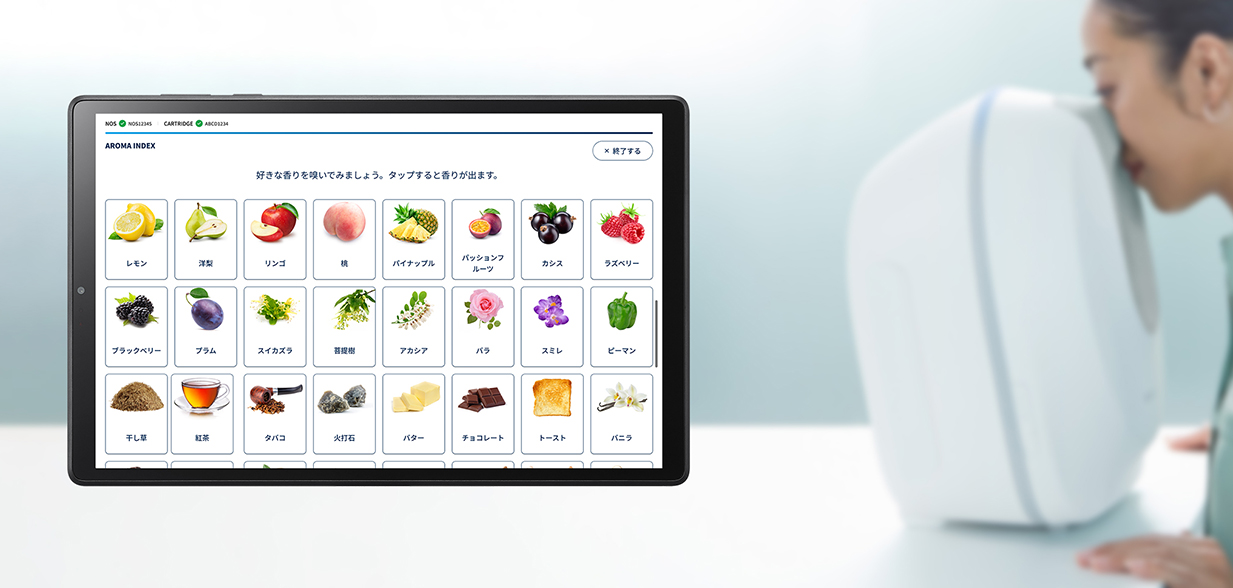

The odor you want to be presented simply by operating the tablet.
*The screen is a sample image.
Caution
- The cartridge can be filled with up to 40 different odorants. You need injection odorants and application settings.
- The cartridge cannot be used repeatedly.
- The cartridge is not guaranteed to match the smells provided by you.
Inquiries and Purchase
Various products, including the next-gen olfactometry system, are sold through the following sales company.Customers wishing to lease or rent products on a short-term basis should also inquire through the websites of the following sales company. The sales company can also answer questions and handle applications for sales, service, repairs, etc., of the next-gen olfactometry system, dedicated cartridges, and other products.
Odorant setup

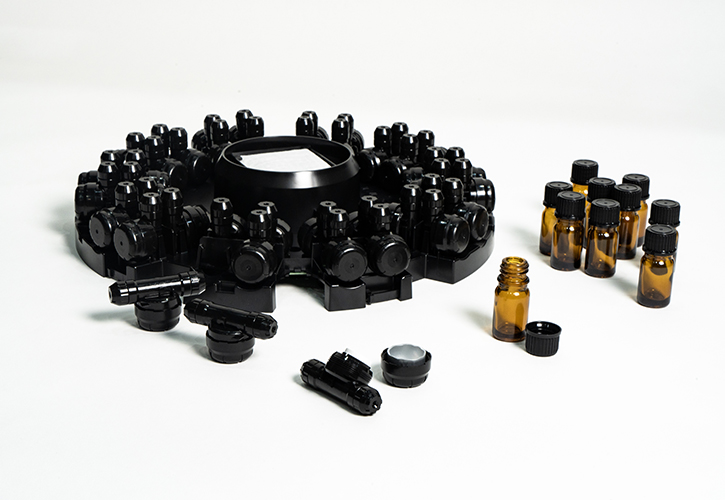

Custom cartridges contain an array of 40 sub cartridges, each of which is filled with an odorant of your choice.
The sub cartridges are filled with the desired odorant and sealed with a cartridge clamper.

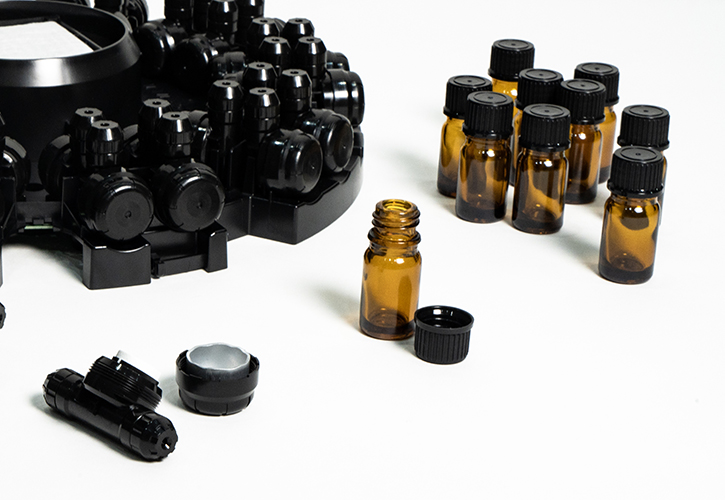

(1) Remove the sub cartridge and inject an odorant.

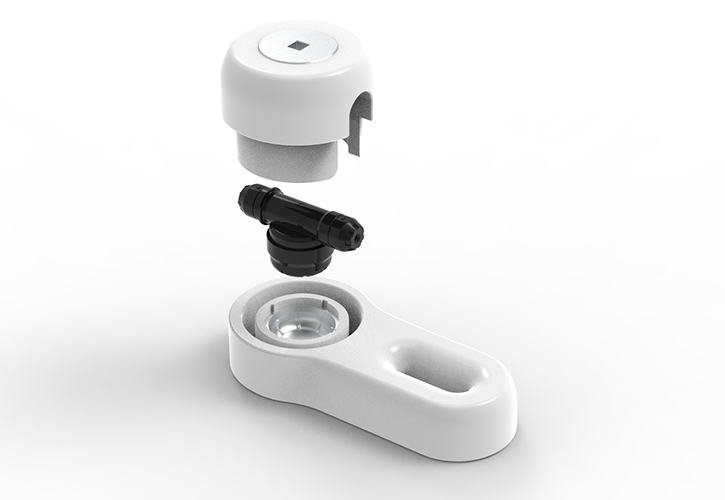

(2) Place the sub cartridge on the cartridge clamper.

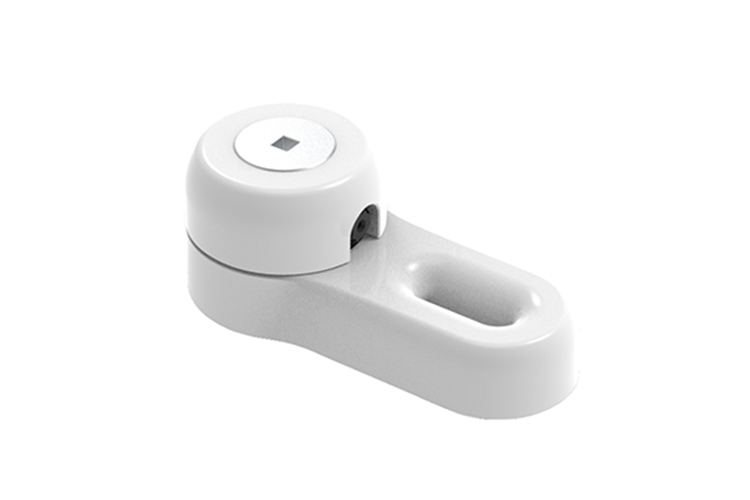

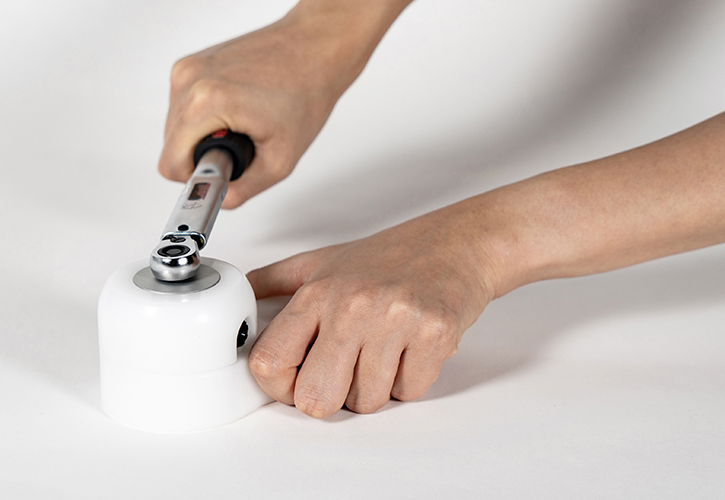

(3) Seal the sub cartridge.
(4) Attach the sub cartridge to the cartridge and set the cartridge into the main unit.
*For detailed instructions, please refer to the help guide on our support page.
